Power System Simulations

Simulating FMUs with the CyDER utility

As power-system simulations can involves large systems (distribution grid with thousands of nodes), we provide a utility function to facilitate connecting FMUs and launching simulation without needing to code it in Python with PyFMI.

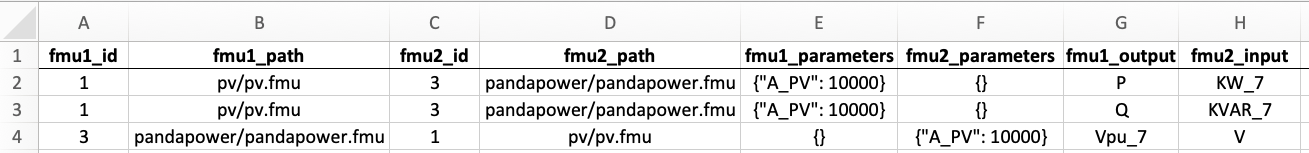

The feature is based of a table defining connections between FMUs. The format is described below.

Where:

• fmu_id: unique ID per FMU instance,
• fmu_path: path to the FMU file,
• fmu_parameters: JSON object to set parameters after loading the FMU,
• fmu1_output: Name of the output from the first FMU
• fmu2_input: Name of the input from the second FMU

In order to launch a simulation the “cyders” command line can be used as follow:

cyders --start 0 --end 1 --connections table.xlsx

or for the full list of options:

cyders --start 0 ^
       --end 1 ^
       --connections table.xlsx ^
       --fmu_type me ^
       --nb_steps 50 ^
       --solver CVode ^
       --rtol 0.001
       --atol 0.001
       --result result.csv

Where:

• start: is the time at start,
• end: is the simulation’s stop time,
• connections: is the table file describing how FMU are connected in the system,
• fmu_type: is Model-Exchange or Co-Simulation deciding which master should be used (not implemented),
• nb_steps: is the number of steps returned in the result file,
• solver: is the name of the solver to pick,
• rtol: is the relative tolerance for the solver,
• atol: is the absolute tolerance for the solver,
• result: is the filename where all the results are saved.

Note: FMU compiled with SimulatorToFMU tend to have a bad performance in Model-Exchange mode, see the next section to increase simulation speed.

Customizing a master algorithm

It is also possible to create a customized master to solve a specific problem, although this is not recommended as it might make it hard to expand the model afterward.

This example shows a master with a “for” loop implementing a large time-step and a “while” loop with a smaller time-step to converge FMUs at a given time. This is especially interesting for simulating Python FMUs when they are forming an algebraic loop. This is also useful to simulate Co-Simulation and Model-Exchange FMUs together.

# Load both pandapower and pv fmus
from pyfmi import load_fmu
pandapower = load_fmu('pandapower/pandapower.fmu', kind='cs', log_level=7)
pv = load_fmu('pv_inverter/SCooDER_Components_Controller_' +
              'Model_Pv_0Inv_0VoltVarWatt_0simple_0Slim_' +
              '0zerohold_0onlyPv_0firstorder.fmu',
              kind='cs', log_level=7)

print('PANDAPOWER FMU')
# Retrieve input names and ids
pandapower_input_name = pandapower.get_model_variables(causality=2).keys()
pandapower_input_id = [pandapower.get_variable_valueref(
    pandapower_input_name[i]) for i in range(0, len(pandapower_input_name))]
print('INPUTS = ' + str(pandapower_input_name) +
      ' --> ' + str(pandapower_input_id))

# Retrieve output names and ids
pandapower_output_name = pandapower.get_model_variables(causality=3).keys()
pandapower_output_id = [pandapower.get_variable_valueref(
    pandapower_output_name[i]) for i in range(0, len(pandapower_output_name))]
print('OUTPUTS = ' + str(pandapower_output_name) +
      ' --> ' + str(pandapower_output_id))

print('PV FMU')
# Retrieve input names and ids
pv_input_name = pv.get_model_variables(causality=2).keys()
pv_input_id = [pv.get_variable_valueref(
    pv_input_name[i]) for i in range(0, len(pv_input_name))]
print('INPUTS = ' + str(pv_input_name) +
      ' --> ' + str(pv_input_id))

# Retrieve output names and ids
pv_output_name = pv.get_model_variables(causality=3).keys()
pv_output_id = [pv.get_variable_valueref(
    pv_output_name[i]) for i in range(0, len(pv_output_name))]
print('OUTPUTS = ' + str(pv_output_name) +
      ' --> ' + str(pv_output_id))

# Set PV and inverter settings
pv_inverter_parameters = {
    'weather_file':("C:\\Users\\cyder\\Desktop\\fmi-for-power-system\\" +
        'examples\\002_cosimulation_custom_master\\pv_inverter\\' +
        'USA_CA_San.Francisco.Intl.AP.724940_TMY3.mos'),
    'n': 1,
    'A': 2000/0.158,
    'eta': 0.158,
    'lat': 37.9,
    'til': 10,
    'azi': 0,
    'thrP': 0.05,
    'hysP': 0.04,
    'thrQ': 0.04,
    'hysQ': 0.01,
    'SMax': 2000*1.05,
    'QMaxInd': 2000*1.05*0.44,
    'QMaxCap': 2000*1.05*0.44,
}

for key, value in pv_inverter_parameters.items():
    pv.set(key, value)

# Inititalize both FMUs
start = '2016-06-17 00:00:00'
end = '2016-06-18 00:00:00'
import datetime as dt
begin = dt.datetime.strptime('2016-01-01 00:00:00',
                             '%Y-%m-%d %H:%M:%S')
start = dt.datetime.strptime(start, '%Y-%m-%d %H:%M:%S')
end = dt.datetime.strptime(end, '%Y-%m-%d %H:%M:%S')
start_s = int((start - begin).total_seconds())
end_s = int((end - begin).total_seconds())

pandapower.setup_experiment(
    start_time=start_s, stop_time=end_s)
pandapower.initialize()
pv.setup_experiment(
    start_time=start_s, stop_time=end_s)
pv.initialize()

# Define simulation parameters
large_step_size = 3600
small_step_size = 1
voltage_tolerance = 0.001
max_number_iteration = 10
v7 = 1
result = {'time': [], 'p': [], 'q': [], 'v7': []}
begin_since_epoch = (
    begin - dt.datetime.utcfromtimestamp(0)
    ).total_seconds()

clock_start = dt.datetime.now()
for time in range(start_s, end_s, large_step_size):
    converged = False
    iteration = 0
    previous_v7 = 0
    while not converged:
        # Define step size
        converged = (abs(v7 - previous_v7) < voltage_tolerance or
                     iteration > max_number_iteration)
        previous_v7 = v7
        if converged:
            step = large_step_size - iteration * small_step_size
        if not converged:
            step = small_step_size

        # Set PV input inputs and do step
        pv.set_real(pv_input_id, [v7])
        pv.do_step(current_t=time, step_size=step)
        q, p = list(pv.get_real(pv_output_id))

        # Set PandaPower inputs and do step
        pandapower.set_real(pandapower_input_id, [q, p])
        pandapower.do_step(current_t=time, step_size=step)
        v12, v7 = list(pandapower.get_real(pandapower_output_id))

        # Save results
        if iteration is not 0:
            result['time'].append(
                dt.datetime.utcfromtimestamp(begin_since_epoch + time))
            result['p'].append(p)
            result['q'].append(q)
            result['v7'].append(v7)

        # Increase time and iteration count
        iteration += 1
        time += step
    print('Converged in ' + str(iteration - 1) + ' iterations')

clock_end = dt.datetime.now()
print('Duration = ' + str((clock_end - clock_start).total_seconds() / 60))

# Terminate FMUs
pv.terminate()
pandapower.terminate()

Notes on alternative options

https://github.com/CATIA-Systems/FMPy/tree/master/fmpy
